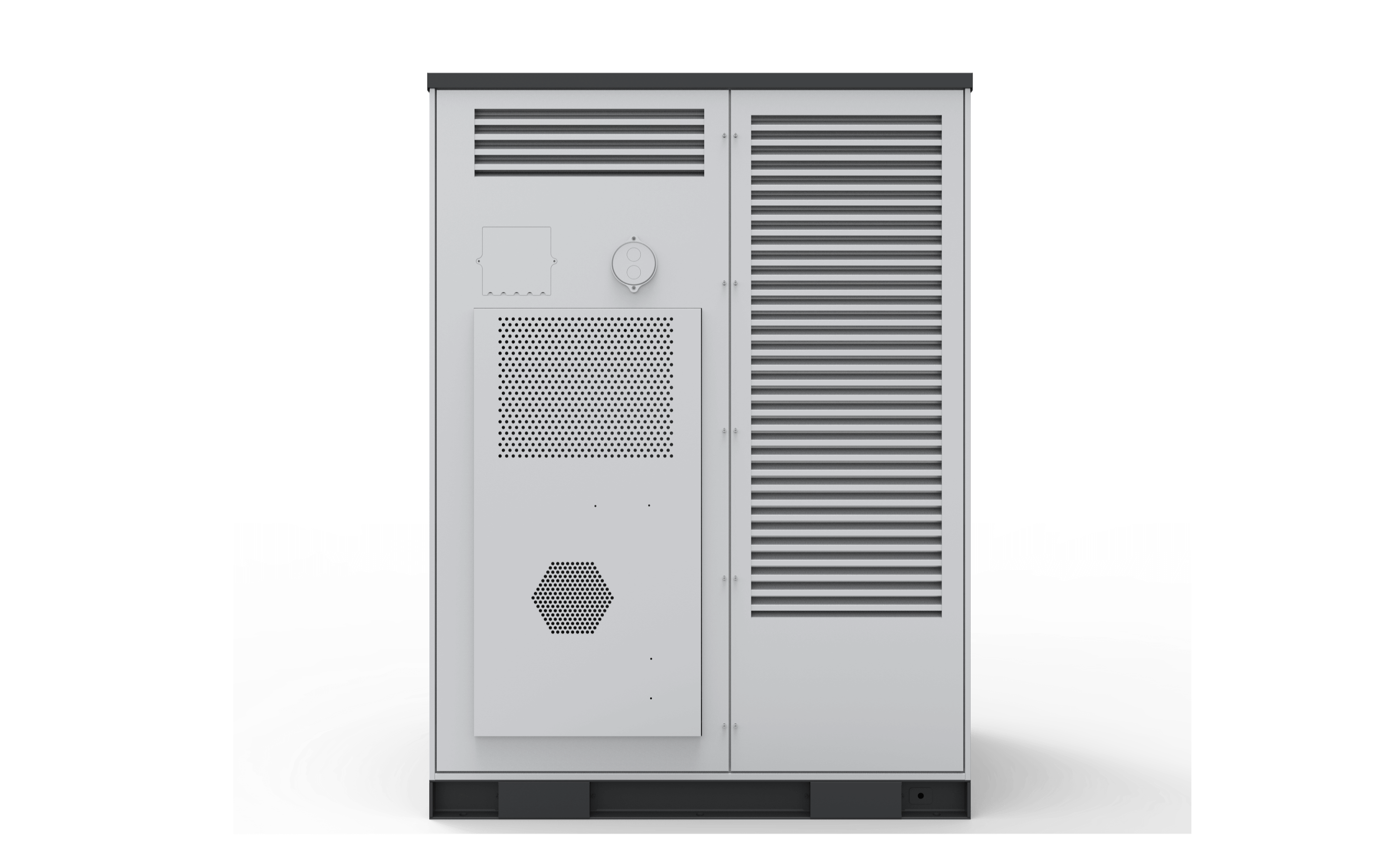

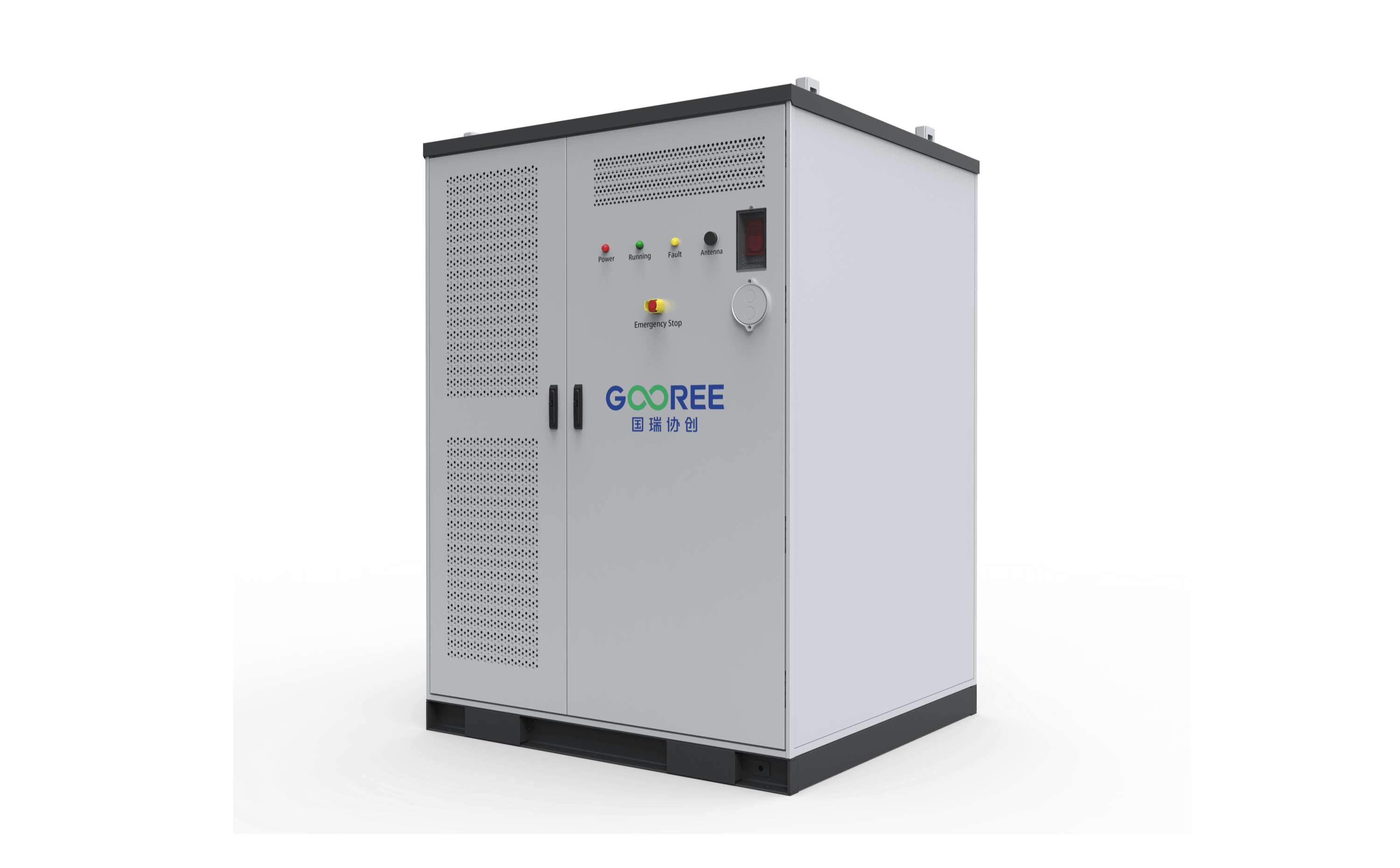

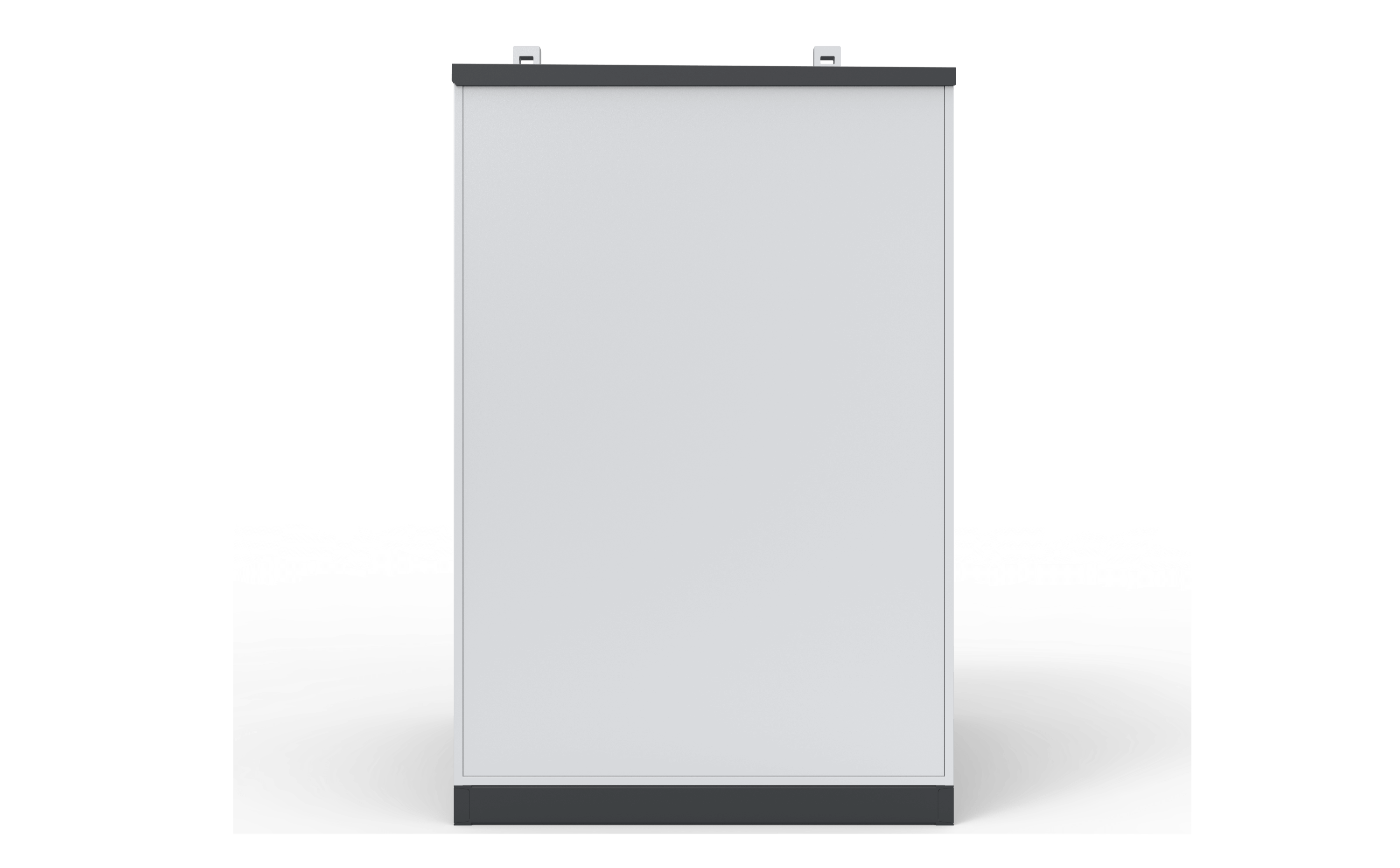

GR261LH is an upgraded, highly integrated energy solution based on the GR261L platform. It combines batteries, PCS, MPPT, and STS into a unified system and supports direct connection to PV, DG, and other energy sources to enable multi...
|
Model |
GR261LH |
|
DC Side |
|
|
Cell type |
LFP / 314Ah |
|
Battery capacity (BOL) |
261.24 kWh |
|
System configuration |
(52S1P) 5S * 1 |
|
Rated DC voltage |
832 V |
|
DC voltage range |
702 ~ 949 V |
|
Charge/discharge rate |
≤0.5P |
|
Cooling Method |
Liquid cooling |
|
PV Side |
|
|
Rated MPPT power |
120kW |
|
Number of MPPT inputs |
2 |
|
PV Open-Circuit Voltage |
200-900V |
|
MPPT voltage range |
200-850V |
|
Rated voltage |
600V |
|
PV Start-up Voltage |
250V |
|
Max PV current |
100A+100A |
|
AC Side |
|
|
Rated AC power |
130 kW / 125 kW / 124.9 kW / 100kW / 99.9 kW (Optional) |
|
Rated AC voltage |
400 V |
|
Rated frequency |
50 / 60 Hz |
|
AC connection |
3W+PE / 3W+N+PE |
|
Rated STS capacity |
300kVA |
|
System Paremrter |
|
|
Demension(W*H*D) |
1350 * 2350 * 1500 mm |
|
Weight |
≤ 2800 kg |
|
Cycle performance |
≥ 6000 cycles; @ 25 ± 2 ℃, 0.5P, SOH ≥ 80% |
|
System Efficiency |
≥ 88% (Including subsidiary Power Consumption) |
|
Fire suppression system |
Aerosol / NOVEC1230 / FM200 (Support PACK level) + Flammable Gas Detection + Exhaust + Water Sprinkler System |
|
Operating ambient temperature range |
-30~55℃ (-30~-20℃ with Heater) |
|
Max operating altitude |
4,000m (de-rate between 2000-4000m.) |
|
Max IP rating |
IP55 |
|
Remote monitoring |
Cloud EMS, Mobile APP |
|
Certifications |
UN38.3, IEC62619, IEC62477, IEC61000, EN50549 |
|
Application scenarios |
On-grid & off-grid, Industrial and commercial energy storage, Micro-grid, Emergency power backup |
